| ::详细信息:: |
| 型号：8224S |

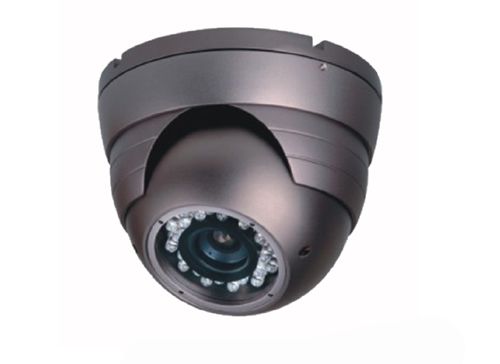

规格：防爆海螺红外摄像机 Φ98×65mm |
| 产品详细描述： |
|
图象传感器\Image Sensor |
1/4〞SHARP CCD |
|
有效像素\Effective Pixels |
PAL:512(H)×582(V) NTSC: 512(H)×492(V) |
|
感光面积\Sensing Area |
4.9×3.7mm |
|
信号系统\Signal System |
PAL/NTSC |
|
水平清晰度\Horizontal Resolution |
420TV lines |
|
快门速度\Shutter Speed |
1/50(1/60)—1/100,000sec |
|
白平衡\White Balance |
Auto white balance |
|
信噪比\S/N Ratio |
More than 48db(AGC OFF) |
|
最低照度\Minimum Illumination |
0Lux At Night(LED ON) |
|
视频输出\Video Output |
1.0Vp-p,75Ω |
|
电源供给\Power Requirement |
DC 12V |
|
工作温度\Operation Temperature |
-10℃~+50℃ RH95％Max |
|
同步方式\Sync System |
Internal Synchronization |
|
视频接口\Video Out |
BNC |
|
尺寸\Dimensions |
Φ98×65mm |
|
净重/毛重\NW/GW |
900g/950g |
|
红外灯数量\LED number |
Φ5 24PCS |
|
红外灯距离\Infraed Lamps |
20M | | |
